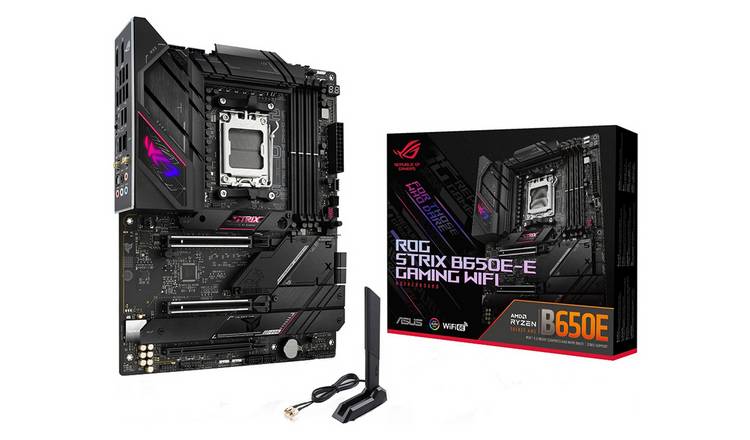

Take your build from B-tier to S with the Strix B650E-E! PCIe 5.0 and DDR5 propel your rig into the future, and innovative Q-Design features make system setup a breeze. All of its perks are backed by a tenacious power solution, hefty heatsinks, and exclusive overclocking technologies to drive you to the next level with Ryzen 7000.
PCIE Slot Q-Release - A physical button unlocks the first PCIe slot's security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.
Q-Code LED Panel - The on-board LED panel shows 2-digit diagnostic codes, providing a valuable reference for troubleshooting common boot problems and hardware issues.
General features:
- Extreme Engine Digi+ ASUS Q-Design ASUS Thermal Solution ASUS EZ DIY AURA Sync.
- ATX form factor.
- AMD B650.
- Compatible with AMD processor.
- Memory slots:4 x DIMM, Max. 192GB, DDR5.
- Memory standard: DDR5.
- Expansion slots: AMD Ryzen Desktop Processors 2 x PCIe 5.0 x16 slots (supports x16 & x8/x4 modes) AMD B650 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode).
- Storage slots: Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode).
- Supports Microsoft Windows 10 or later.
- Power button.
- Reset button.
- Clear CMOS button.
Cooling:
- Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers.
- Pump fan.
- Fan cooling.
- Heatsink.
- VRM heatsinks.
- M.2 heatsinks.
Connectivity:
- 6 USB 2.0 ports.
- 2 USB type C ports.
- 1 Ethernet port.
- 1 HDMI ports.
- 1 Display port.
- Headphones jack.
- BIOS: 256 Mb Flash ROM, UEFI AMI BIOS.
General information:
- Weight 2330g.
- W244, D305 mm.
- Manufacturer's 3 year guarantee.
- DDR5 memory channel.
- Supports 8000MHz memory.
- EAN: 4711081906209.
